Product name : Contactless Card Chip Bonding Machine YCB-18
Item : YCB-18
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

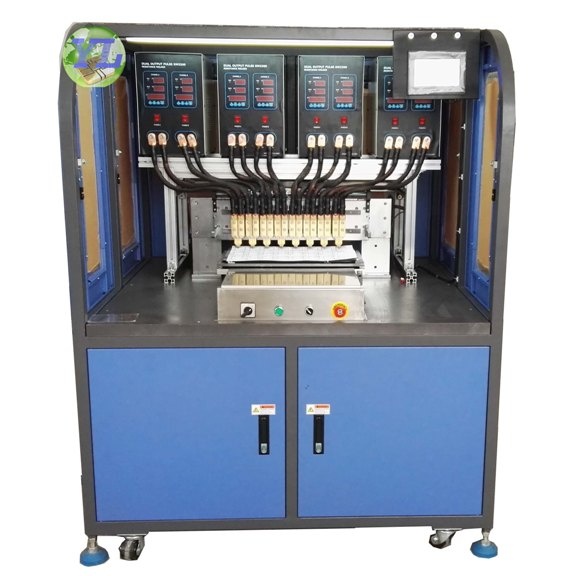

Contactless Card Chip Bonding Machine YCB-18

Feature Description

The machine is designed for bonding or welding the contactless card antennas and chips together in an automatic and speedy way.

In order to ensure its reliability, the key components such as PLC, touch screen and servo system from Mitsubishi are applied inside.

The lead screw by German REXROTH is applied to ensure precise motion precision.

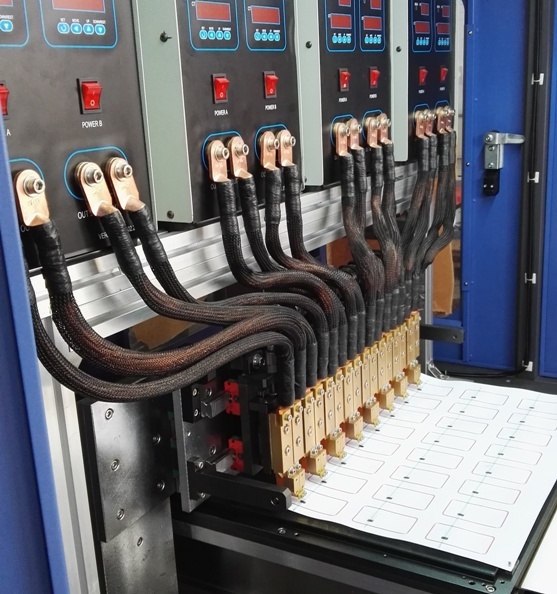

The bonding unit is dual-pulse high-frequency inverting welding system to ensure fast and quality welding, and the instant current output or instant voltage output can be freely selected.

      The bonding is fast in speed and good in quality


Technical Parameters

1.          Speed: 3500 units per hour

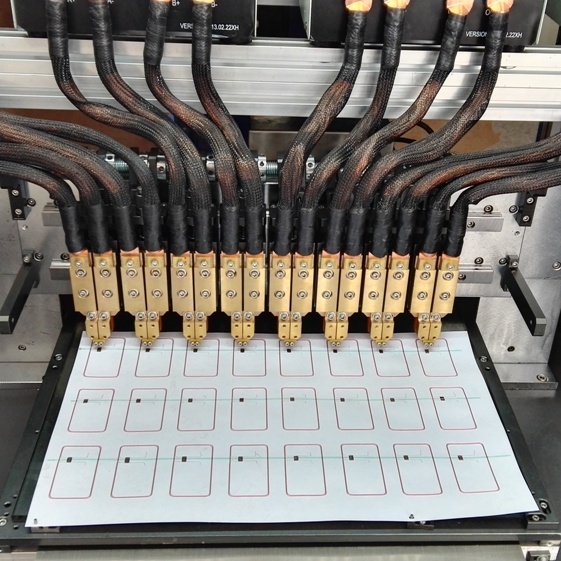

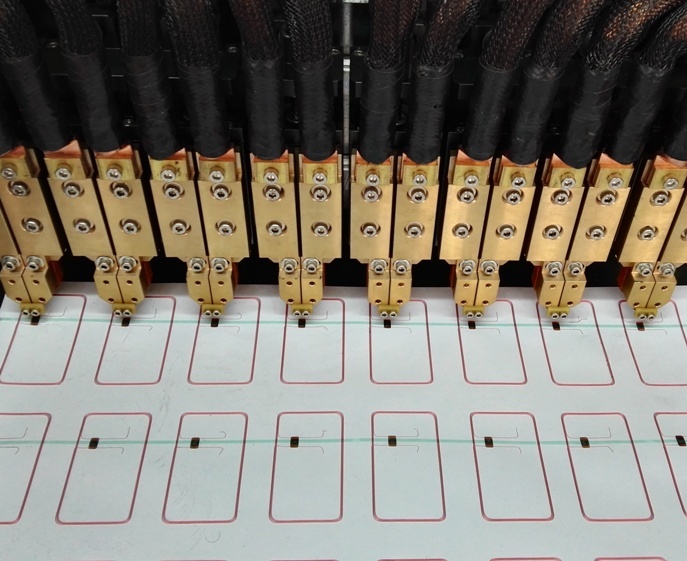

2.          Bonding head number:8

3.          Motion precision: 0.0125mm

4.          Mechanical adjustment: 0.01mm

5.          Compressed air: 6 kg/cm2

6.          Air Consumption: 80 L/min.

7.          Power:18KW

8.          Power supply: AC220V 50/60HZ 100A

9.          Weight: 1000 KG

10.       Dimension: L1300×W900×H1700mm
