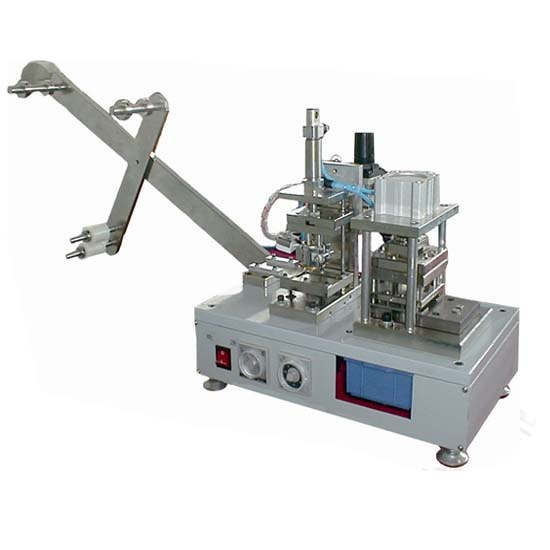

Contact IC Card Module Cutter YMC-1

Feature Description

  The machine is designed for cutting the single IC chips from the IC Module tape after the hot melt glue is pressed to the IC module bottom side.

1.        It is controlled by relay unit with easy maintenance.

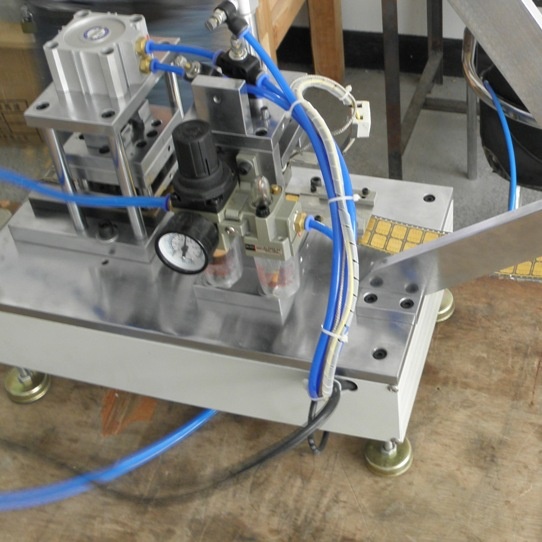

2.        All the pneumatic parts are made by SMC to ensure quality operation.

  Basic configuration

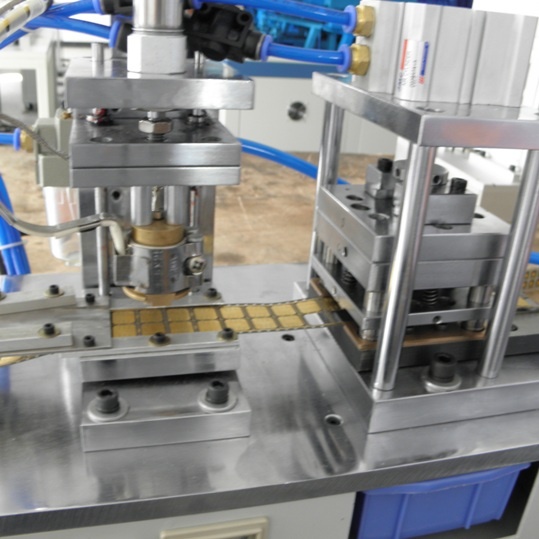

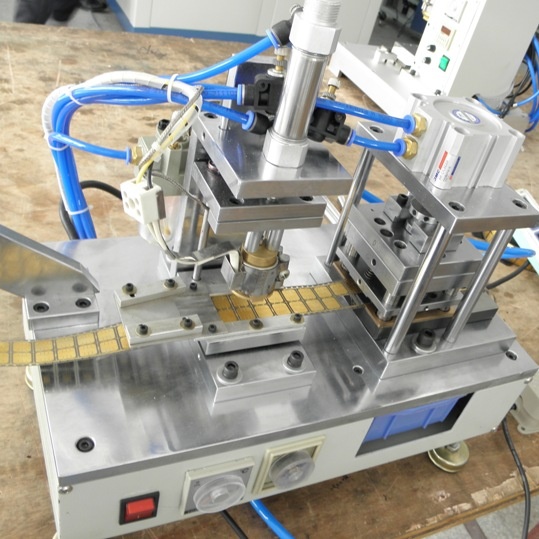

  Material releasing(glue tape wheel and chip reel wheel)→hot pressing station (stick the glue tape onto chip bottom by hot lamination)→chip cutting station(cut the chip tape into single pieces)→chip       collection unit

Technical Parameters

1.        Speed: 4000-6000 units per hour

2.        Material model: M2/M3 standard chip tape

3.        Compressed air: 6 kg/cm²

4.        Air Consumption: 10 L/min.

5.        Power:0.4KW

6.        Power supply: AC220V 50/60HZ4

7.        Weight: 30 KG

8.        Dimension: L600×W300×H300mm
